Robotic Cell - Car Air Box Grommet Assembly


Robotic Cell - Car Air Box Grommet Assembly

"Robotic Cell - Car Air Box Grommet Assembly
Compact Robotic Cell includes:
•    robot with gripper for three components
•    shuttle table with nest for the air box
•    three vibratory bowl feeders for components (two types of rubber gromet, metal compression limiter)

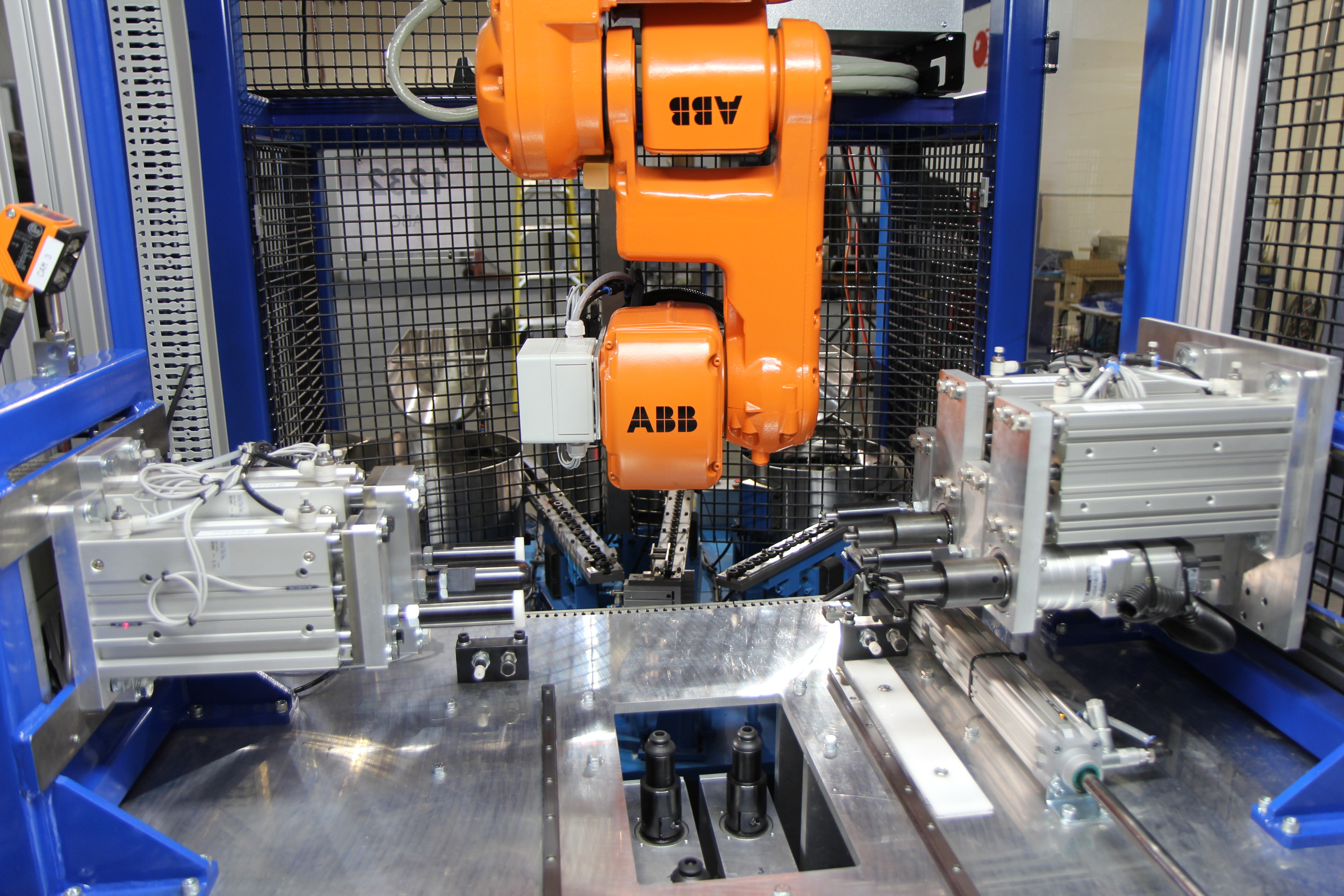

•    tooling for components assembly into the box
•    vision cameras for poka-yoke
Robot:
•    Pick components up from bowl feeders escapement
•    Load components in tooling
Bowl Feeder (three):
•    Bowl for components
•    Linear guide and escapement for components
Shuttle Table with Nest:
•    Pneumatic drive
•    THK guides"
